General
Colour of appliance: BlackWidth: 80 cm
Dimensions of the heating elements: 1 x (38,0 x 21,0 cm), 1 x (18,0 cm Ø), 1 x (21,0 cm Ø)
Power of the heating elements: 1 x 1.8 (3.1) kW, 3 x 2.2 (3.7) kW
Frame type: Frameless
Number of radiant plates: 0
Number of induction plates: 4
heating with booster: All
Controls: front
Maximum output air extraction: 500 m³/h
Boost position air extraction: 622 m³/h
Maximum output recirculating air: 441 m³/h
Boost position output recirculating: 595.0 m³/h
Sound power at max. speed (2010/30/EC): 69 dB
Sound power boost (2010/30/EC): 74 dB
Noise level: 69 dB(A) re 1pW
Energy consumption of hob: 178.3 Wh/kg
Included accessories: 1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

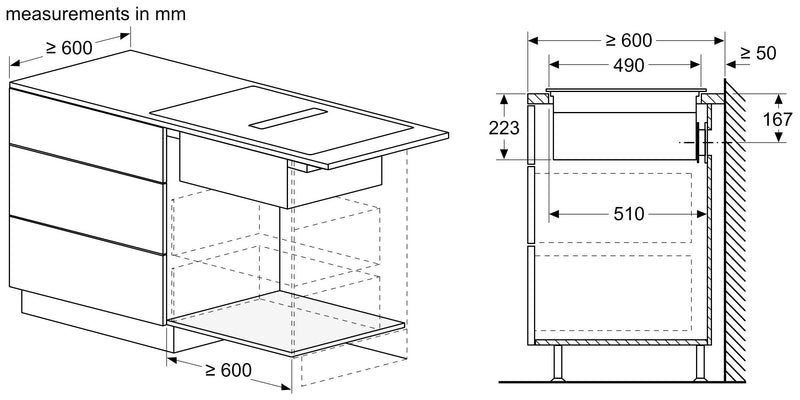

Size and weight
Dimensions: 223x802x522 mmMinimum height for installation: 490 mm
Maximum height for installation: 490 mm
Minimum width for installation: 750 mm
Maximum width for installation: 750 mm
Depth for installation: 223 mm
Appliance height above the worktop: 6.0 mm
Technical specifications
Connection Rating: 7400 WNominal power: 220-240/380-415 V
Length electrical supply cord: 110.0 cm
Plug type: no plug (electrical connection by electrician)
Included user manuals: [DA, DE, FI, FR, NO, SV]
Comfort hob
Type of control: TouchControlhotplate control settings: 17 power levels
Cooking zone flexibility: Combi zone
powerBoost: Yes
activeLight Plus: No
fryingSensor Plus: No
Infrared cooking sensor: No
cookingSensor Plus ready (sensor available as additional purchase): No
Powermove: No
Power Transfer: No
Quick Start: Yes
Keep warm function: No
Electronic timer: Yes
Comfort hood
iQdrive: YesBoost position: Yes
Delay Shut off modes: 30R_12E min
Number of speed settings: 3-stages + intensive setting
Connectivity
Home Connect: NoPower consumption standby/display off: 0.2 W
Time auto-standby/displ. off: 20.0 min
